High-Speed Gearbox SN2285 for Aerospace Product Testing

Cotta recently designed and built this new High-Speed Gearbox Model SN2285 for testing use on aerospace products by a customer in the Indianapolis, IN area. Our Model SN2285 is a foot-mounted, single increasing stage, single output, high-speed gearbox that is designed for test stand use. This model comes standard with a double-keyed stub input shaft and an aerospace output mounting pad. The input can be driven clockwise or counterclockwise, with the output rotating in opposite direction to the input. Due to its compact size, this gearbox is designed to operate with a remote lube supply.

Model Series SN2285 High-Speed Gearbox Specifications:

  • Nominal Power of 150 hp at 70,000 rpm
  • Max Output Speed of 85,000 rpm
  • Ratios of 5:1 or 6:1 overspeed; other ratios are available
  • Max Accel / Decel Rate of 2,000 rpm/sec at output
  • Approximate Weight of 300 lbs.

For more information about Cotta SN2285 and other high-speed gearboxes in our line, visit our HSG products page.

Custom Engineered High-Speed Gearbox Solutions

Built to provide many years of service, Cotta High-Speed Gearboxes are offered in a variety of standard and customized designs. For over 50 years, we have designed and manufactured a diverse line of high-speed gearboxes that are used by some of the largest OEM companies in the world for numerous R&D and production test stand applications for automotive, aerospace and industrial components. Our high-speed gearboxes are also applicable for speed management in non-aviation, industrial applications – from turbine reduction gears to centrifugal driers, to numerous other instances where a highly specialized, powerful and reliable solution is needed. Learn more: High-Speed Gearboxes

High Speed Gearbox Solutions for University R&D Facilities

Cotta has an extensive background in working with research facilities at universities worldwide, supplying high speed gearboxes for test stand applications.  Some of those facilities are involved with research and product development for OEM’s in the aerospace propulsion and power industries.

For over 50 years, Cotta has designed and manufactured a diverse line of high speed gearboxes that are used by some of the largest OEM companies in the world.  The gearboxes are developed for numerous R&D and production test stand applications for automotive, aerospace and industrial components. Cotta’s high speed gearboxes are also applicable for speed management in non-aviation, industrial applications – from turbine reduction gears to centrifugal driers, to numerous other instances where a highly specialized, powerful and reliable solution is needed.

On a recent project for a university, Cotta’s engineering team designed and manufactured a high-speed gearbox for a test stand.  See specifications below:

RATIO:  1 TO 13.02

MAX TORQUE:  700 FT-LB HIGH SPEED SHAFT

MAX SPEED:  23,000 RPM HIGH SPEED SHAFT

APPROX WEIGHT:  3000 LBS

High-Speed Gearbox

Cotta’s SN2291 is a single increasing stage, two output, foot mounted high=speed gearbox designed for test stand use.  The model has a stub input shaft and two outputs located horizontally with the option of a third output. The outputs can have the same ratio, or different ratios on each output.

Power:  400 HP nominal

Output Speed:  Up to 15,000 RPM

Ratios:  Up to 5 overspeed. Contact Cotta for specific ratios within range

Max Accel/Decel Rate:  2000 RPM/SEC at output. Contact Cotta for higher rates

Input Configuration:  Custom aerospace accessory mounting pad is typical. Shafts and various other pads available

Output Configuration:  Custom aerospace accessory mounting pad is typical. Shafts and various other pads available

Rotation:  Input can be driven CCW or CW. Outputs rotate opposite to input

Lubrication:  Positive delivery.  Pump, heat exchanger, and necessary temp and pressure controls are furnished

Sump:  The gearbox case is the sump

Options:  Accelerometers, speed pickup, and other application specific can be accommodated or supplied

Approximate Weight:  700 LBS

Standard Finish:  2-part polyurethane enamel

Built to provide many years of service, Cotta High-Speed gearboxes are offered in a variety of standard and customized designs.

LEARN MORE

High-Speed Gearboxes for Aviation Component Test Equipment

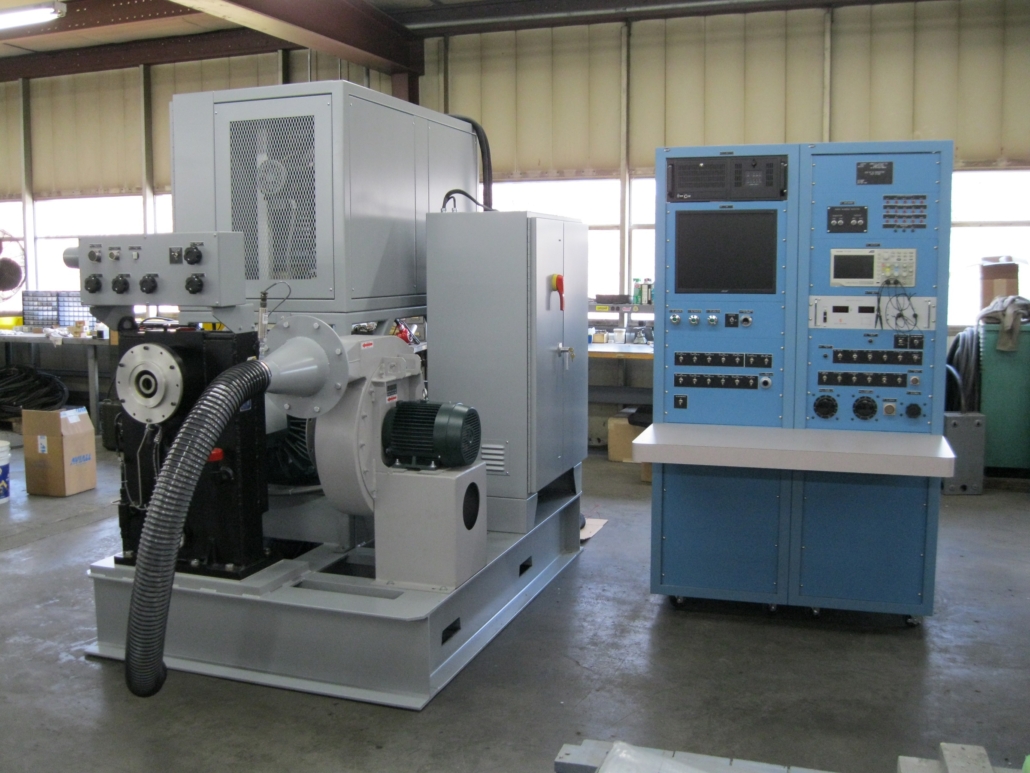

Staley Co., located in Carmel, NY, is one of the leading manufacturers specializing in Aircraft Ground Support Test Equipment.  Staley has been using Cotta high-speed gearboxes for some of their most difficult and demanding applications for aviation component test equipment.  The Cotta gearboxes have been successfully integrated in test stands ranging from 25 HP to 300 HP, and 20,000 to 60,000 RPM.

Kevin Loffredo, Senior Engineer and Partner at Staley Co, stated “Cotta ranks up there as one of the best.  We have worked closely with their engineering team time and time again, particularly on unique challenges for mounting a particular aircraft component on test.  We have found the team at Cotta to be extremely knowledgeable, professional, and in a word, ‘speaking our language.”  Kevin further stated, “Beyond the engineering and initial purchase, after sales support and product reliability have been tremendous.  Over 30 plus years, we have deployed dozens and dozens of Cotta gearboxes without issue.  In several cases, with the help of Cotta engineers, we have even been able to retrofit 25 to 30 year old boxes with different gear sets for a different speed range application. In short, when it comes time to look for a high-speed gearbox, we know who to call.”

Learn More:  Staley Co



High-Speed Gearbox Aviation Test equipment
