Transfer Case for Hi-Rail Truck

Cotta offers the most dependable and versatile transfer cases available that convert your truck engine power for a wide range of onsite work capabilities. Cotta’s heavy-duty transfer cases are optimized for vocational truck, custom chassis, well drilling, oil field service, and specialty truck applications.  They provide up to 800 HP and 22,000 Lb-Ft of input torque, and offer modular concepts that help minimize your inventory and maximize application flexibility.

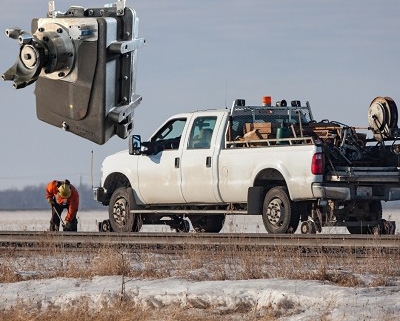

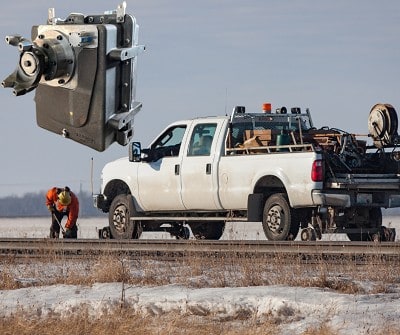

Cotta’s engineers have designed heavy-duty transfer cases for many decades, and can offer hundreds of proprietary designs to best match your power equipment requirements. An example of an application in which Cotta has been a go-to solution provider for transfer cases is in hi-rail trucks.  In these types of applications, the vehicles need to be able to go as fast forwards on a rail as they do backwards.  Since that is not possible with a regular truck transmission, Cotta’s forward reverse transfer case has been a great solution for companies in the hi-rail truck market.

See specifications below:

Ratio:  1:1 Forward & Reverse

Max Input Power:  450 HP

Max Input Torque:  1100 Ft-Lb

Forward Mode Yield Torque:  17000 Ft-Lb

Max Input Forward Speed:  3400 RPM

Max Input Reverse Speed:  2100 RPM

Approximate Weight:  720 Lb

Transfer Cases

LEARN MORE:

FORWARD/REVERSE GEARBOX

COTTA TRANSFER CASES
